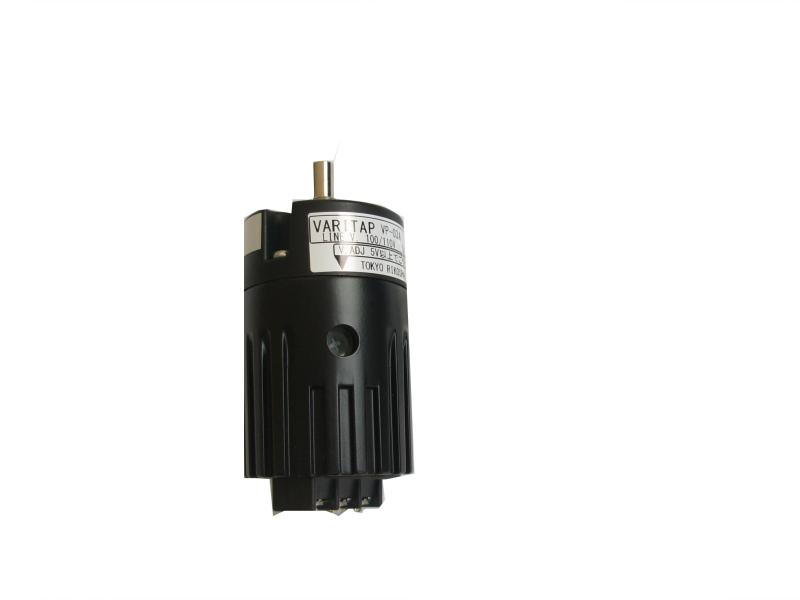

Varitap VP series

item Varitap VP series

Thyristor power regulator
Varitap VP series0 Varitap VP series1 Varitap VP series2
バリタップ　VPシリーズ0 バリタップ　VPシリーズ1 バリタップ　VPシリーズ2
Specifications It is packed with only the basic functions.
Varitap is a registered trademark of thyristor type AC power regulator.
Characteristics Easy adjustment: Just turn the knob to adjust the voltage.
Easy to install: Pre-drilled holes for volume mounting make installation easy.
Adjustable lower limit voltage: Already adjusted to 15±5V at 50Hz. For use at 60Hz, use a trimmer to adjust.
With control contact terminal: The main circuit can be opened and closed with a small-capacity contact.

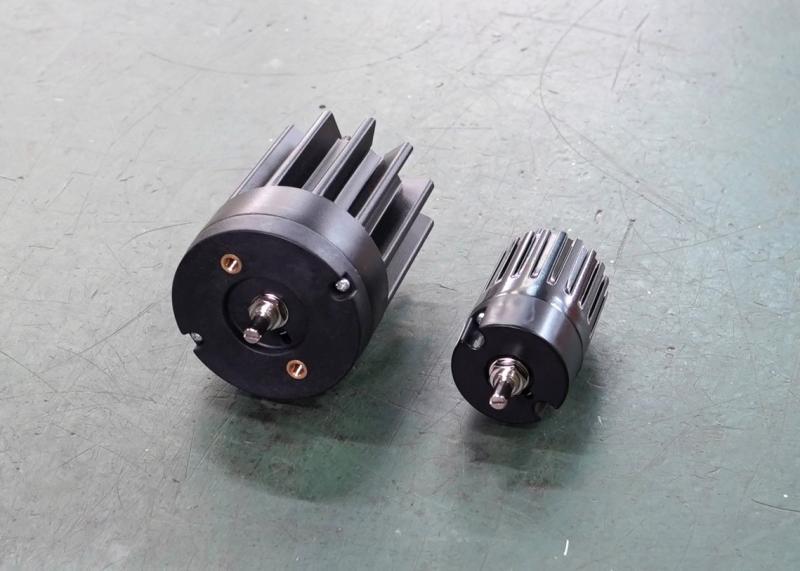

Unique round heat dissipation: Space-saving and highly efficient.
ETC Temperature control, lamp dimming, power adjustment
Request a catalog for this product
Specifications
Type VP-A VP-C
Control Method
Phase Control
Phase Control
Setting method Manual setting (built-in setting device), non-voltage contact Manual setting (built-in setting device), non-voltage contact
Number of phases Single Phase Single Phase
frequency 50/60Hz 50/60Hz
Rated Circuit Voltage 100/110V 200/220V
Voltage Fluctuation Range ±10% of rated circuit voltage ±10% of rated circuit voltage
Rated Current 0.5A, 1.5A, 3A, 5A, 10A 1.5A, 3A, 5A, 10A
Output Adjustment Range 15~98% of input voltage 7.5 to 98% of input voltage
Ambient temperature 0~40℃ (current reduction above 40℃) 0~40℃ (current reduction above 40℃)
Minimum Load Current 100mA 100mA
Insulation resistance Power circuit: Grounded DC500V megger 50MΩ or more Power circuit: Grounded DC500V megger 50MΩ or more
Dielectric Strength Power circuit: Grounded AC 1kV 1 minute Power circuit: Grounded AC 1kV 1 minute
Accessories Scale plate Scale plate
Request a catalog for this product
Product Specifications
Varitap VP series Specifications
VP-A type Circuit voltage: 100V/110V
Model Rated Current Capacity Body dimensions Mass
VP-005A
0.5A
50VA
 φ42×75.5
85g
Shaft length 16.3mm included
VP-015A
1.5A
150VA
 φ42×75.5
85g
Shaft length 16.3mm included
VP-03A
3.0A
300VA
 φ42×88.5
115g
Shaft length 16.3mm included
VP-05A
5.0A
500VA
 φ42×88.5
115g
Shaft length 16.3mm included
VP-10A
10.0A
1kVA
 φ70×113
420g
Shaft length 13mm included

VP-C type Circuit voltage: 200V/220V
Model Rated Current Capacity Body dimensions Mass
VP-015C
1.5A
300VA
 φ42×75.5
85g
Shaft length 16.3mm included
VP-03C
3.0A
600VA
 φ42×88.5
115g
Shaft length 16.3mm included
VP-05C
5.0A
1kVA
 φ42×88.5
115g
Shaft length 16.3mm included
VP-10C
10.0A
2kVA
 φ70×113
420g
Shaft length 13mm included
