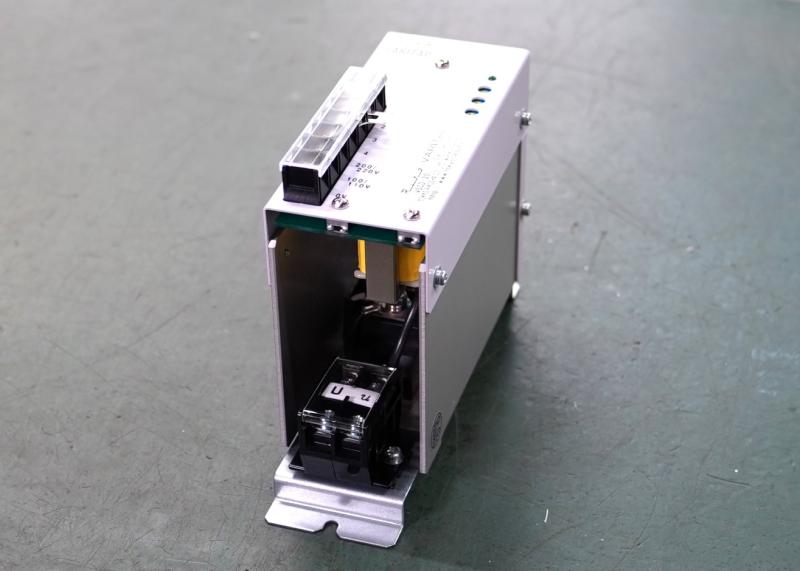

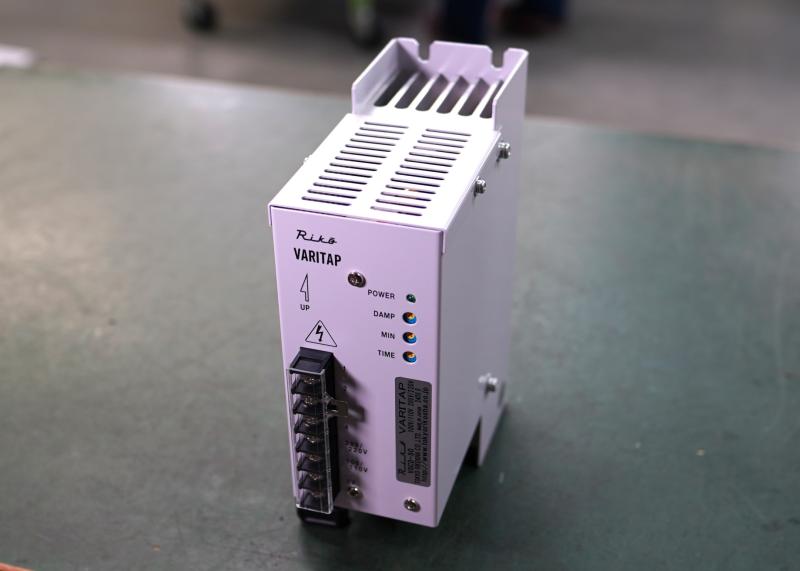

VSCD series (RoHS2 compliant)

item VSCD series (RoHS2 compliant)

Thyristor power regulator
VSCD series (RoHS2 compliant)0 VSCD series (RoHS2 compliant)1
VSCDシリーズ（RoHS2対応）0 VSCDシリーズ（RoHS2対応）1
Specifications A low-cost model with automatic 50/60Hz switching.
Varitap is a registered trademark of a thyristor-type AC power regulator.
Characteristics Automatic frequency switching (automatically detects 50/60Hz, so no switching is required)
Compact, lightweight, and low cost.
Output has excellent linearity.
Soft-up time can be adjusted from 0.2 to 8 seconds.
Compatible with inductive loads
Transformer primary control, motors, halogen lamps (by using soft-up)
ETC Temperature adjustment, lamp dimming, power adjustment, motor adjustment
Request a catalog for this product
Specifications
Control Method Phase Control
Setting method 4~20mA(200Ω), 0.8~4VDC(100KΩ), manual setting, non-voltage contact
Number of phases Single Phase
Frequency 50/60Hz automatic switching
Rated Circuit Voltage 100/110V, 200/220V compatible
Voltage Fluctuation Range ±10%
Rated Current 20.30.50.75.100A
Soft Start Approx. 0.2 seconds
Soft Up Variable from 0.2 to 8 seconds
Output Adjustment Range 0~98%
Gradient Adjustment Range 0~100%
Ambient temperature 0~60℃ (current reduction above 40℃)
Applied Load Resistive load, transformer primary control
Insulation resistance Power circuit: Case side DC500 megger 50MΩ or more
Dielectric strength Power circuit: Case side AC1.5kV for 1 minute
Request a catalog for this product
Product Specifications
VSCD series (RoHS2 compliant) Specifications
Circuit voltage: 100/110V, 200/220V
Model Rated Current Specification Body dimensions Mass
VSCD-20
Single phase, 2 wire, 20A
 Dry cooling, gradient setting
59×135×178
1.1Kg
Lower limit voltage setting
VSCD-30 Single phase, 2 wire, 30A Same as above 59×135×178 1.1Kg
VSCD-50 Single phase, 2 wire, 50A Same as above 68×165×198 2.4Kg
VSCD-75 Single phase, 2 wire, 75A Same as above 73×165×228 2.9Kg
VSCD-100 Single phase, 2 wire, 100A Same as above 93×175×228 3.1Kg
