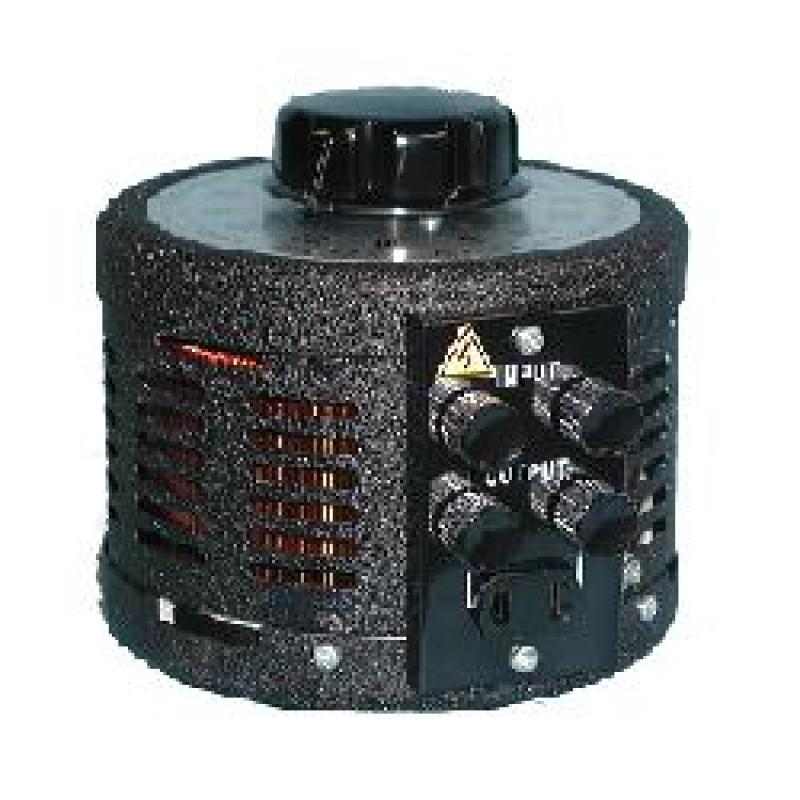

Specifications	Ricoh Slide Transformer is a general term for sliding voltage regulators. Ricoh Slide Transformer has a long track record as an ideal AC voltage regulator that does not generate waveform distortion.
Characteristics	・No distortion of generated waveform The output can be extracted with almost no distortion for the input sine wave. ・Stepless output control The output voltage can be continuously adjusted steplessly, so you can obtain the output voltage you need. ・Compact and lightweight By adopting Class B insulation, we have succeeded in making it compact and lightweight (some are Class A) ・High efficiency Even under the worst conditions, it is extremely efficient at about 90%, making it an energy-saving type.
ETC	・Precise adjustment of power supplies for testing and inspection ・Precise adjustment of rotation speed ・Adjustment of excess and insufficient voltage in industrial, scientific and chemical equipment, and household electrical appliances ・Precise adjustment as a lamp lighting power supply

Specifications

R Series
Type	RSA	RSC	RTC
Appearance of installation	Installation appearance case included	Installation appearance case included	Installation appearance case included
Number of phases	Single Phase	Single Phase	3-phase
Wire type	2-wire	2-wire	3-wire
Frequency	50/60Hz	50/60Hz	50/60Hz
Rated Input Voltage	100V	200V	200V
Rated Output Voltage	100V	200V	200V
Output Variable Range	0~130V	0~240V	0~240V
Output Rated Current	1~200A	2.5~100A	5~72A
Load Fluctuation	0~100%	0~100%	0~100%
Waveform Distortion	Equivalent to input waveform	Equivalent to input waveform	Equivalent to input waveform
Efficiency	Approximately 90%	Approximately 90%	Approximately 90%
Power factor	0.95 or higher	0.95 or higher	0.95 or higher
Ambient temperature	0~40℃	0~40℃	0~40℃
Ambient Humidity	35~93%	35~93%	35~93%
Temperature Rise	[RSA-1.3 only]	Coil 75deg (80deg directly below carbon)	Coil 75deg (80deg directly below carbon)
	Coil 55deg (70deg directly below carbon)
	[Other than RSA-1.3]
	Coil 75deg (80deg directly below carbon)
Insulation resistance	6MΩ or more at DC500V megger	6MΩ or more at DC500V megger	6MΩ or more at DC500V megger
Dielectric strength	AC1000V 1 minute	AC1000V 1 minute	AC1000V 1 minute

Product Specifications

RSA/RSC/RTC series Specifications

item RSA/RSC/RTC series
