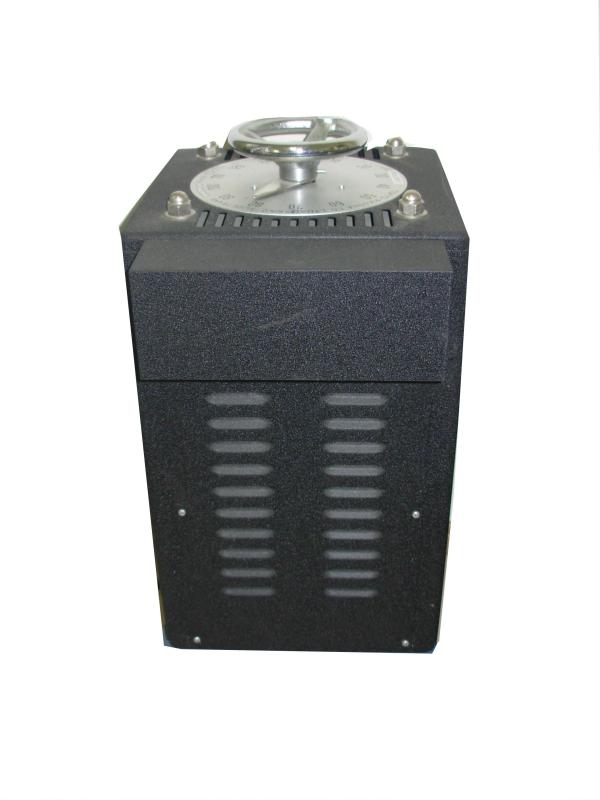

RTF Series

item RTF Series

AC Voltage Regulator
RTF Series0
RTFシリーズ0
Specifications Ricoh Slide Transformer is a general term for sliding voltage regulators. Ricoh Slide Transformer has a long track record as an ideal AC voltage regulator that does not generate waveform distortion.
Characteristics ・No distortion of generated waveform
The output can be extracted with almost no distortion for the input sine wave.
・Stepless output control
The output voltage can be continuously adjusted steplessly, so you can obtain the desired output voltage.
・Compact and lightweight
By adopting Class B insulation, we have succeeded in making it compact and lightweight (some parts are Class A)
・High efficiency
Even under the worst conditions, it is extremely efficient at about 90%, making it an energy-saving type.
ETC ・Precise adjustment of power supplies for testing and inspection
・Precise adjustment of rotation speed
・Adjustment of excess and insufficient voltage in industrial, scientific and chemical equipment, and household electrical appliances
・Precise adjustment as a lamp lighting power supply
Request a catalog for this product
Specifications
R Series
Type RLC RSF RTF
Appearance of installation Installation appearance case included Installation appearance case included Installation appearance case included
Number of phases Single Phase Single Phase Three phase
Wire type 3-wire 2-wire 3-wire
Frequency 50/60Hz 50/60Hz 50/60Hz
Rated Input Voltage 100V x 2 400V 400V
Rated Output Voltage 100V x 2 400V 400V
Output Variable Range 0~130V×2 1.7~37.5A 2.1~30A
Rated Output Current 20~50A x 2 1.7~37.5A 2.1~30A
Load Fluctuation 0~100% 0~100% 0~100%
Waveform Distortion Equivalent to input waveform Equivalent to input waveform Equivalent to input waveform
Efficiency Approximately 90% Approximately 90% Approximately 90%
Power factor 0.95 or higher 0.95 or higher 0.95 or higher
Ambient temperature 0~40℃ 0~40℃ 0~40℃
Ambient Humidity 35~93% 35~93% 35~93%
Temperature Rise Coil 75deg (80deg directly below carbon) Coil 75deg (80deg directly below carbon) Coil 75deg (80deg directly below carbon)
Insulation resistance 6MΩ or more at DC500V megger 6MΩ or more at DC500V megger 6MΩ or more at DC500V megger
Dielectric strength AC1000V 1 minute AC1000V 1 minute AC1000V 1 minute
Request a catalog for this product
Product Specifications
RTF Series Specifications
RTF type
Model Output current A Output capacity KVA Body dimensions Mass kg
RTF-2.1 2.1 1.5 157×202×365 13
RTF-4.2 4.2 3 187×242×418 22
RTF-8.0 8 5.5 242×297×465 39
RTF-12.8 12.8 9 283×348×525 66
RTF-15.6 15.6 10.8 400×465×1192
