MS Series

item MS Series

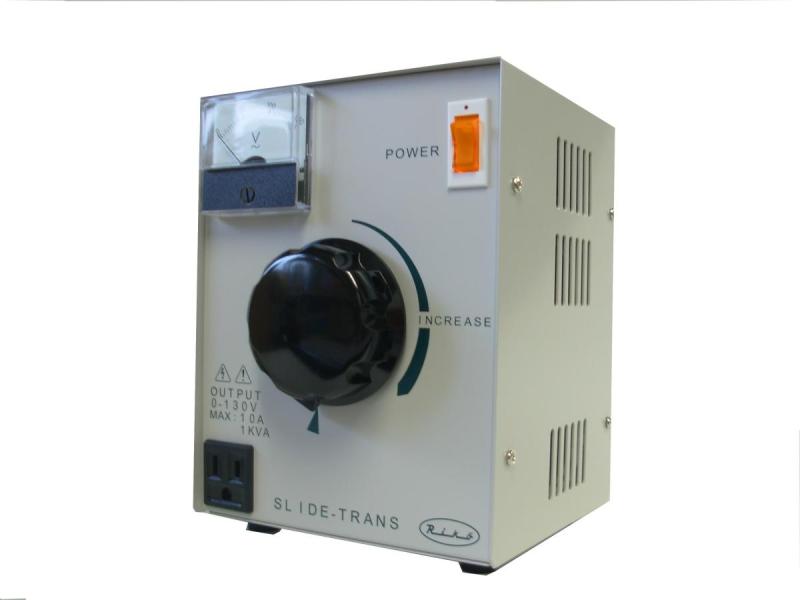

AC Voltage Regulator
MS Series0
MSシリーズ0
Specifications Handy type with meter for added ease of use
Characteristics The power input has a plug, so it can be easily connected. The voltage can be adjusted to the required voltage using the handle. The output has a socket, so it can be easily connected.
ETC Please use it to adjust voltage at home or to ensure voltage on-site.
Other Comes with input indicator light and output analog voltmeter.
Request a catalog for this product
Specifications
MS Series
Appearance of installation Comes in a portable case with a meter
Number of phases Single Phase
Wire type 2-wire
Frequency 50/60Hz
Rated Input Voltage 100V
Rated Output Voltage 100V
Output Variable Range 0~130V
Output Rated Current 10A
Load Fluctuation 0~100%
Waveform Distortion Equivalent to input waveform
Efficiency Approximately 90%
Power factor 0.95 or higher
Surroundings 0~40℃／35~93RH
Temperature Rise Coil 75deg (80deg directly below carbon)
Insulation resistance AC1000V 1 minute
Dielectric strength AC1000V 1 minute
Request a catalog for this product
Product Specifications
MS Series Specifications
MSA type
Model Output current A Output capacity KVA Body dimensions Mass kg
MSA-10Ⅱ 10A 1 145×171×217 7.1
